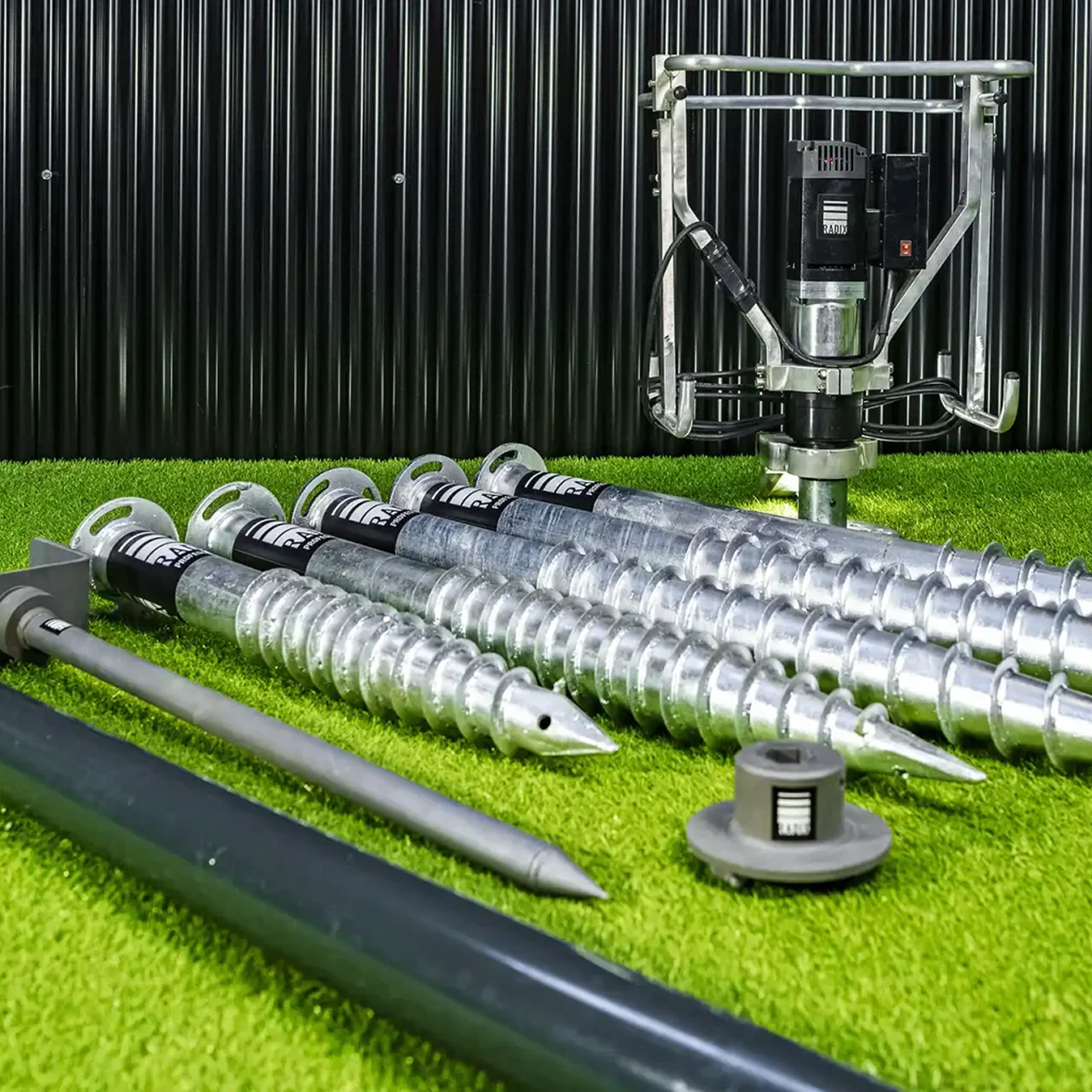

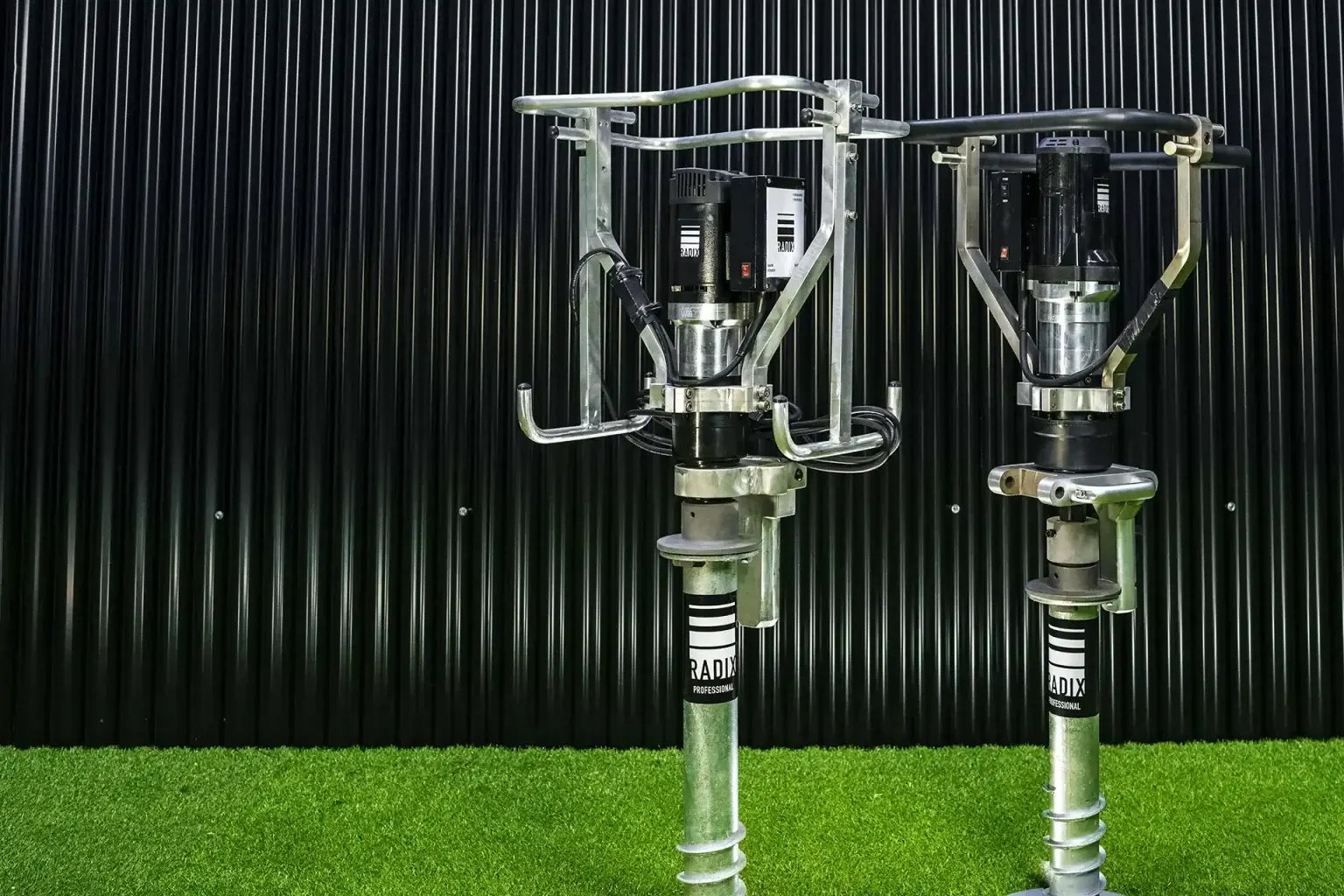

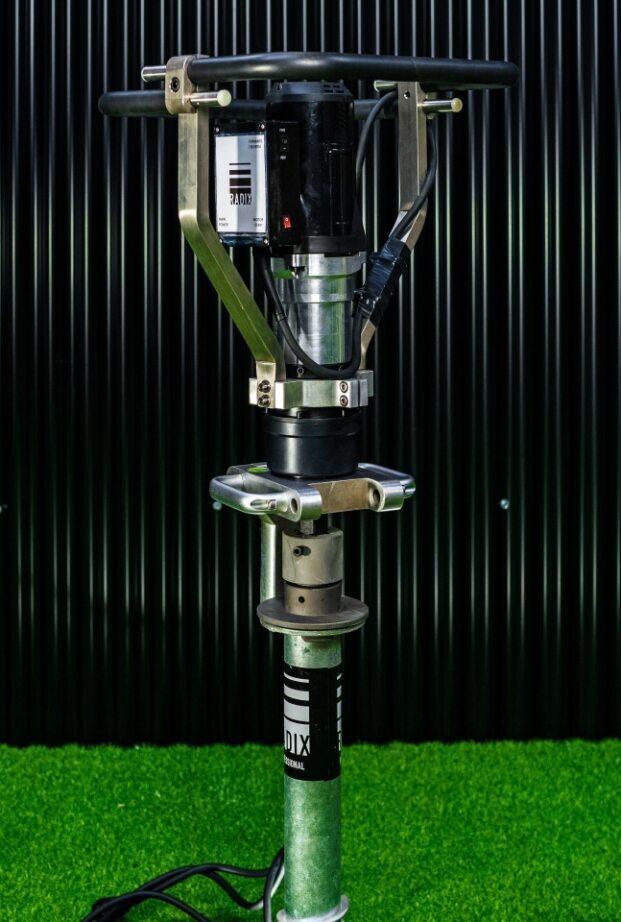

RDX 4.0 Ground Screw Machine
The RDX 4.0 is designed with an integrated gearbox and offers a maximum 4,000Nm of torque, aimed toward professionals installing ground screws where large capacity and load-bearing depths are required.
Installation machine features:
Rated Voltage:
230v~
Rated Output – Low Gear (L):
8 rpm, max 4,000 Nm
Rated Output – High Gear (H):
22 rpm, max 1,800 Nm
Dimensions (HWD):
650 x 500 x 500 mm
Weight:
28.5 kg without telescopic arm
Telescopic Arm Dimensions:
100 x 1490 – 2890 mm
Telescopic Arm Weight:
12 kg

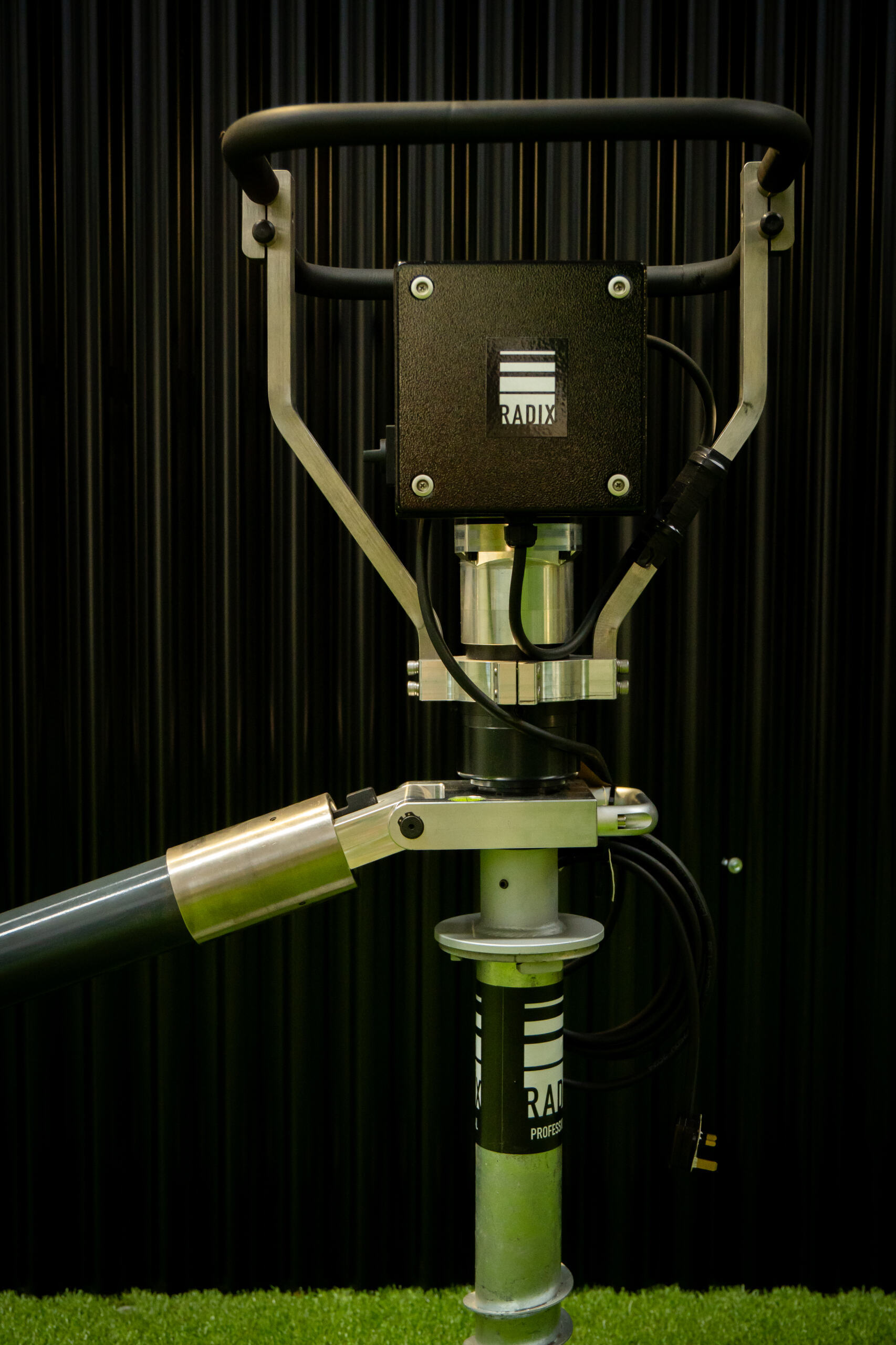

RDX 7.0 Ground Screw Machine
The RDX 7.0 is equipped with an integrated gearbox and offers a maximum 7,000 Nm of torque to deliver our most powerful hand-turning installation machine where greater and load bearing depths are required.
Ground screw machine features:
Rated Voltage:
230v~
Rated Output – Low Gear (L):
5 rpm, max, 7,000 Nm
Rated Output – High Gear (H):
9.5 rpm, max, 3,200 Nm
Dimensions (HWD):
700 x 600 x 600 mm
Weight:
30 kg without telescopic arm
Telescopic Arm Dimensions:
1500 x 80 mm
Telescopic Arm Weight:
19 kg

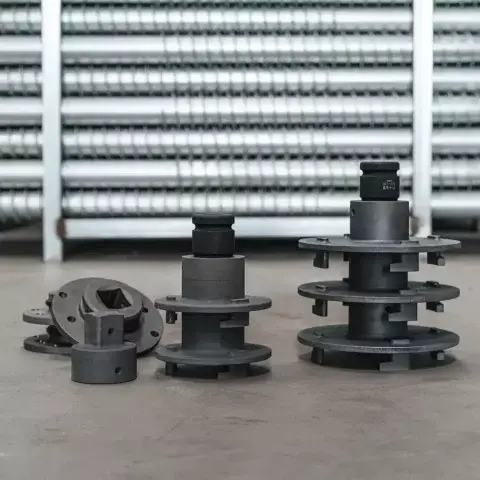

Ground screw machine drive adapters
At RADIX, our drive adapters are machined with precision to connect our installation tools and ground screws with minimal interference and maximum transfer of energy.

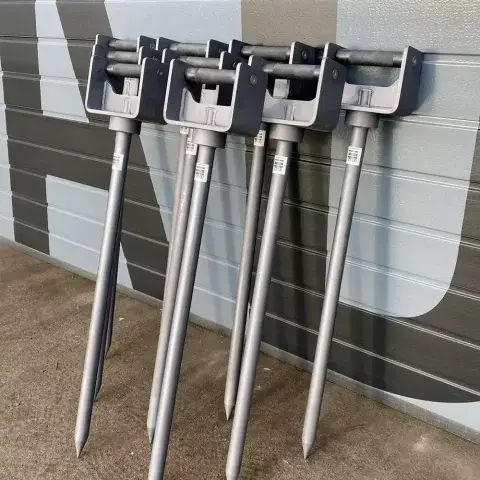

The Pilot (sliding hammer spike)
The Pilot is a multi-tool that supports ground screw installation and saves professionals time and hassle, creating a pilot hole for ground screws and providing a torque arm support when deploying a ground screw machine.

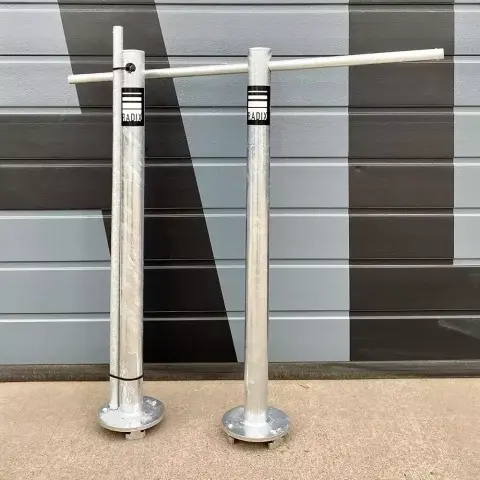

DIY Ground screw installation tool
Our manual ground screw installation tool for installing ground screws up to 1050mm, although those that have been using it have been known to install our longer ground screws too!
